FEATURE:● V-way bed is hardened and precision ground.● Spindle is supported by precision taper roller bearing.
● Power longitudinal feed allows threading.
● Adjustable gibes for sideways.
● Tailstock can be offset for turning tapers.● Tolerance test certificate, test flow chart included
|

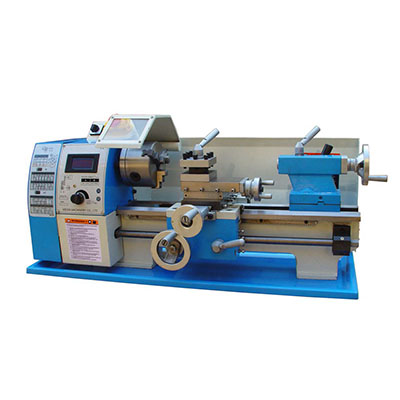

Model No. |
PL180V |
|
Specifications |
|
|
Distance between centers |
300 mm |
|
Swing over bed |
180 mm |
|
Swing over cross slide |
95 mm |
|
Width of bed |
100 mm |
|
Taper of spindle bore |
MT3 |
|
Spindle bore |
21 mm |
|
Range of spindle speeds (steps) |
50-2500 rpm |
|
Range of longitudina feeds |
0.08 - 0.16 mm |
|
Range of inch threads |
10 - 44T.P.I |
|
Range of metric threads |
0.5-3 mm |
|
Top slide travel |
55 mm |
|
Cross slide travel |
75 mm |
|
Tailstock quill travel |
60 mm |
|
Taper of tailstock quill |
MT2 |
|
Main motor |
600W |
|
Packing size |
800x480x460 mm |
|
Net weight |
60 kg |
|
Standard Accessories |
Optional Accessories |
|
3-jaw chuck (100mm) |
4-jaw chuck (100mm) |
|
Splash guard |
Backplate |
|
Chip tray |
Follow rest |
|
Toolbox & tools |
Steady rest |
|
|
Face plate (175mm) |
|
|
Threading dial |
|
|
Stand |
